Product description:
1.This model is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor and LCD TV. 2.Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip. 3.Suitable for : Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions. Feature: Support Digital Signal and Russian Controller chip: LUA63A82 TV tuner chip: R842 OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video) Power Input: DC 12V 4A Audio output power: 2x8W Consumption: operating mode -> = 6W simple - <0.3W Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)/HDMI/VGA/AV IN/YPbPr Additional inputs outputs: audio mini jack 3.5mm USB USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG.
Attention Please:
This driver board supports 13.3-inch 14-inch 15.6-inch resolution 1366x768 LVDS 40pin 1CH /6bit Notebook LCD Panel. If you are not sure if it is correct, you can contact us. 1. Pay attention to the positive and negative poles. 2. When you are connected to the power supply, please do not hot-plug, otherwise the main integrated circuit may be damaged 3. Do not touch the drive plate and keep it insulated from metal contact. Please take care of the LVDS cable.
Packing list :

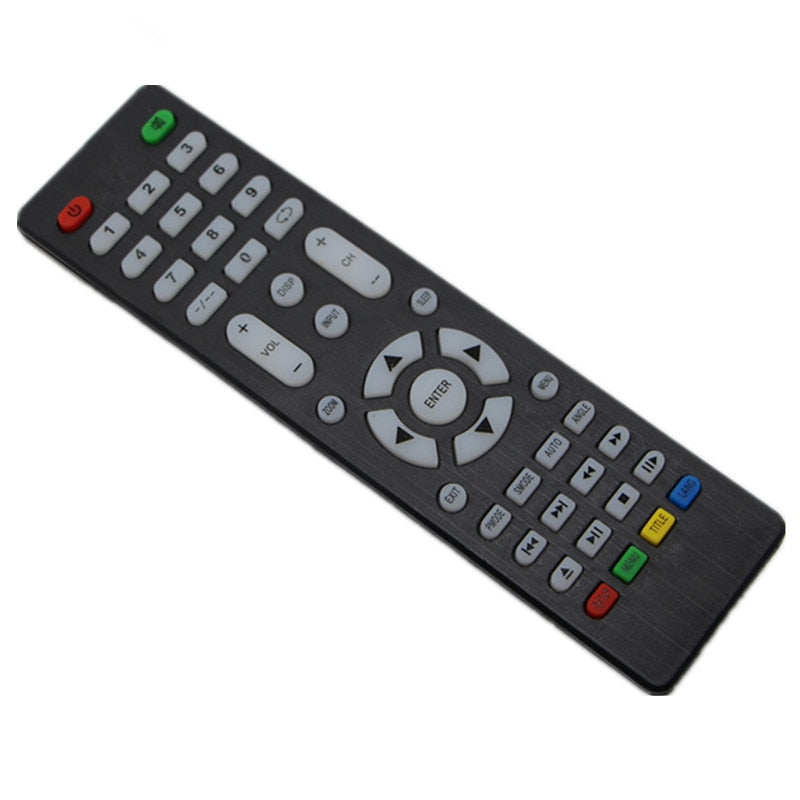

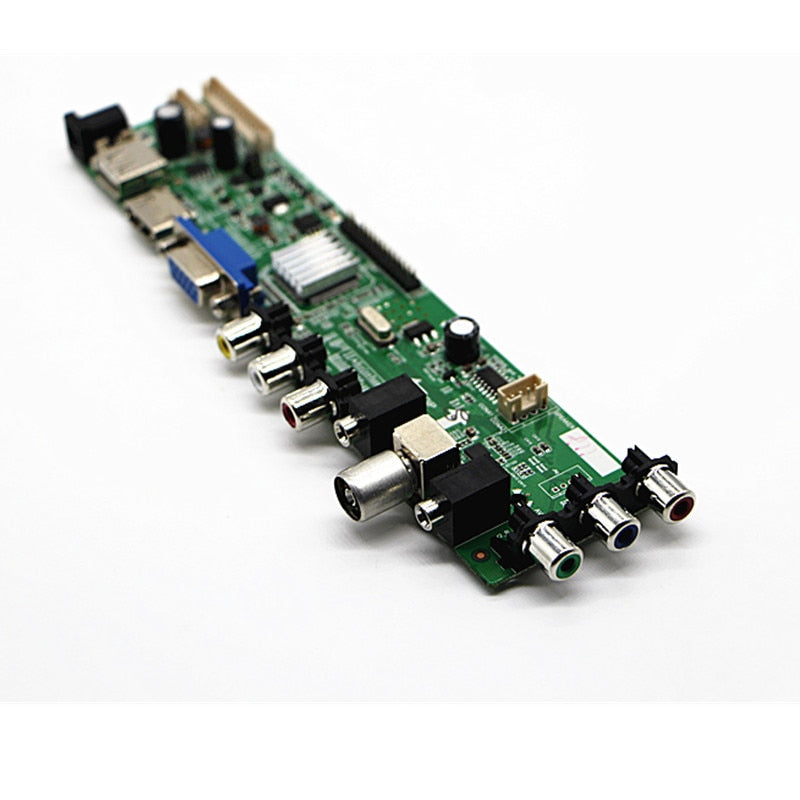

1* LCD TV controller board 1* LVDS cable 1* keyboard and cable 1* remote control
Compatible LCD model:
